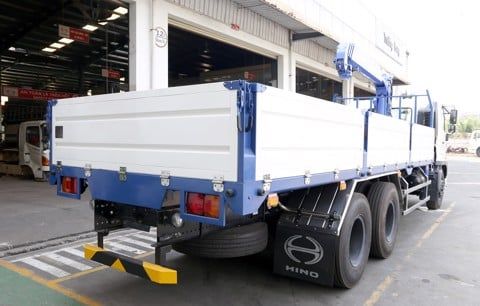

15 Ton Hino Crane Truck
Price Contact
Promotion
-
Physical damage coverage and civil insurance
-
Co operative badge
-
GPS
-
7 year maintanance
-
Free vehicle checking fee
-
Vehicles instalment 80%
Cabin Chassis Hino FL8JT7A Cranes Tadano TM - ZE304MH Section 4 Max lifting power 3.030 kg x 2,5 m Min lifting popwer 480 kg x 9,8 m Total payload 24.000 kg Payload after body instalation 13.500 kg Inner Dimention 6.940 x 2.340 x 650 mm
-
Hotline:0906 72 0101
-
Email: info@truonglong.com
-
Facebook: Hino Trường Long
| Total payload (Kg) | 24.000 |
| Engine | J08E - WD |
| Type | Diesel engine HINO J08E-WD, 6-cylinder in-line, turbo charged and intercooled |
| Max Power (ISO NET) | 280 PS - (2,500 round/minutes) |
| Max Torque (ISO NET) | 824 N.m - (1,500 round/ minutes) |
| Bore & Stroke (mm) | 112 x 130 |
| Steering system | Telescopic and tilt steering column with locking device, recirculating ball with hydraulic booster intergral type |
| Clutch | Dry single plate with damper springs, hydraulic with air booster |
| Fuel injection | Electronic control common rail type |
See more
| Series | 500 series |
| Model | FL8JT7A |
| Gross weight | 24.000 kg |
| Pay load | 13.500 kg |
| Engine model |
Diesel engine HINO J08E-WD, 6-cylinder in-line, turbo charged and intercooled
|
|
Max Power (ISO NET)
|
280 PS - (2,500 round/minutes)
|
|
Max Torque (ISO NET)
|
824 N.m - (1,500 round/ minutes)
|
|
Piston displacement (cc)
|
7.684
|
|
Fuel injection
|
Electronic control common rail type
|
|
Crane model
|
Tadano TM-ZE304MH
|
|
Crane capacity
|
3,030 kg - 2.5 m
|
|
Hook Stowing Device
|
Mechanically stowed beneath boom top portion
|
